HandiTap Push Plate Switches
Larco HandiTap push plate switches are available in either 36" or 9" tall (for dual mounting). Choose from hardwired or radio controlled (optional) switches.They feature a vertical, rounded design made with anodized, extruded aluminum and sloped ABS caps that are aesthetically pleasing, while providing reliable operation. Its rugged, durable design and slim profile make it ideal for wall or post mounting inside or out.
They are a perfect replacement for traditional push plate switches that can be inconvenient not only for wheelchair users, but also for those who have their hands full or other physically challenged individuals.
- Available in clear anodized aluminum
- Smooth, curved touch surface allows for activation from a wide range of angles
- Sloped caps eliminate use as a shelf
- Weather resistant, rugged construction

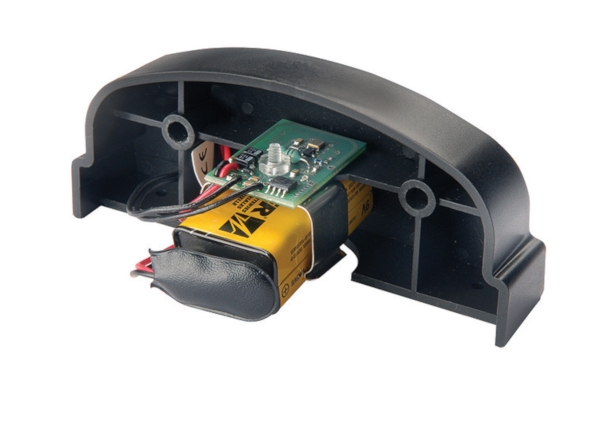

- Wireless 433 MHz Ultra-small Transmitter (optional)
- Handicap logo with "Press to Open graphic"
| 9" HandiTap | |
| Part Numbers | 9" Clear (9V1N00) 9" Clear with 433MHz Transmitter ( 9V1N400) |
| Material/Finish | Clear Anodized |
| Electrical/Power | 12 - 24 VAC/VDC – Hardwired, 9 VDC (battery) – Wireless Transmitter |
| Operating Temperature | -40ºC to +60ºC (-40ºF to +140ºF) |
| Dimensions (WxHxD) | 4.28” x 10.68” x 1.82” |
| Standard Engraving | Handicap Logo/Press to Open |
| Mounting Options | Wall or post mounting |
| Operating Options | Hardwired or Wireless Transmitter (433 MHz) |
| Radio-Control Signal Range | Up to 100 feet with Larco's Ultra Small transmitters |
| Activation Switch Type | (1) NO or NC |
| Activation Switch Rating | 15A @ 125 or 250 VAC or 2A @ 48 VDC |

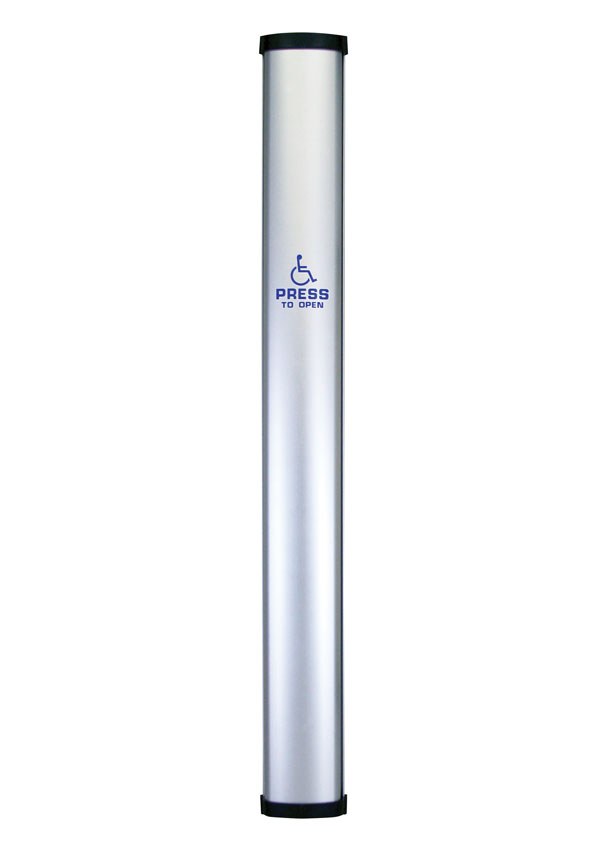

| 36" HandiTap | |
| Part Numbers | 36" Clear (36V1N00) 36" Clear with 433MHz Transmitter ( 36V1N400) |
| Material/Finish | Clear Anodized |
| Electrical/Power | 12 - 24 VAC/VDC – Hardwired, 9 VDC (battery) – Wireless Transmitter |
| Operating Temperature | -40ºC to +60ºC (-40ºF to +140ºF) |
| Dimensions (WxHxD) | 4.28” x 37.68” x 1.82” |
| Standard Engraving | Handicap Logo/Press to Open |
| Mounting Options | Wall or post mounting |
| Operating Options | Hardwired or Wireless Transmitter (433 MHz) |
| Radio-Control Signal Range | Up to 100 feet with Larco's Ultra Small transmitters |
| Activation Switch Type | (1) NO or NC |
| Activation Switch Rating | 15A @ 125 or 250 VAC or 2A @ 48 VDC |
