LED Backlit Stainless Steel Switches
The Blue Diamond line of wall switches from Larco features blue backlighting for greater visibility and safety in every surrounding. Designed to save energy, Larco’s Blue Diamond wall switches incorporate energy efficient solutions, including light guiding LED technology. The push plate stays cool while illuminated.
- Attractive, durable and engineered for both indoor and outdoor environments
- Available in stainless steel finish
| 4.5" Square | |
| Design | |
| Style | Square |
| Material/Finish | 18-gauge Stainless Steel/Brushed Finish |
| Standard Engravings | Plain (None) Handicap Logo/Press To Open (HPTO) Press To Open (PTO) Handicap Logo (HCP) |
| Part Number(s) | See Hardware Catalog at top of page for details |
| Operation | |
| Electrical/Power | Low Voltage: 12-24 VAC/VDC 9 VDC (Battery) with Wireless Transmitter |
| Operating Temperature | -40˚C to 60˚C Optional Transmitter: 433 MHz: -4°F (-20°C) to 122°F (55°C) |
| Dimensions (WxHxD) | Switch: 4.50" x 4.50" x 1.50" (115x115x38) |
| Radio-Control Signal Range | Up to 100 feet with Larco's Ultra-small Transmitter |
| Activation Switch Type | (1) NO or NC |
| Activation Switch Rating | 15A @ 125 or 250 VAC or 2A @ 48 VDC |
| Options | |
| Mounting | Switch only (includes Adapter Plate) 4.5" Universal Box: 5.06” x 5.06” x 1.75” (129x129x45) Utility Box: 4.00" x 4.00" x 4.00" (102x102x102) |
| Wireless Communication | 433 MHz Receiver & Transmitters 300 MHz Receiver & Transmitters |
| 4.5" Round | |
| Design | |
| Style | Round |
| Material/Finish | 18-gauge Stainless Steel/Brushed Finish |
| Standard Engravings | Plain (None) Handicap Logo/Press To Open (HPTO) Press To Open (PTO) Handicap Logo (HCP) |
| Part Number(s) | See Hardware Catalog at top of page for details |
| Operation | |
| Electrical/Power | Low Voltage: 12-24 VAC/VDC 9 VDC (Battery) with Wireless Transmitter |
| Operating Temperature | -40˚C to 60˚C Optional Transmitter: 433 MHz: -4°F (-20°C) to 122°F (55°C) |
| Dimensions (WxD) | Switch: 4.50" Diameter x 1.50"(115x38) |
| Radio-Control Signal Range | Up to 100 feet with Larco's Ultra Small Transmitters |
| Activation Switch Type | (1) NO or NC |
| Activation Switch Rating | 15A @ 125 or 250 VAC or 2A @ 48 VDC |
| Options | |
| Mounting | Switch only (includes Adapter Plate) 4.5” Round Box: 5.17” Diameter and 1.85” (132x47) 4.5” Universal Box: 5.06” x 5.06” x 1.75” (129x129x45) Utility Box: 4.00" x 4.00" x 4.00" (102x102x102) |
| Wireless Communication | 433 MHz Receiver & Transmitters 300 MHz Receiver & Transmitters |

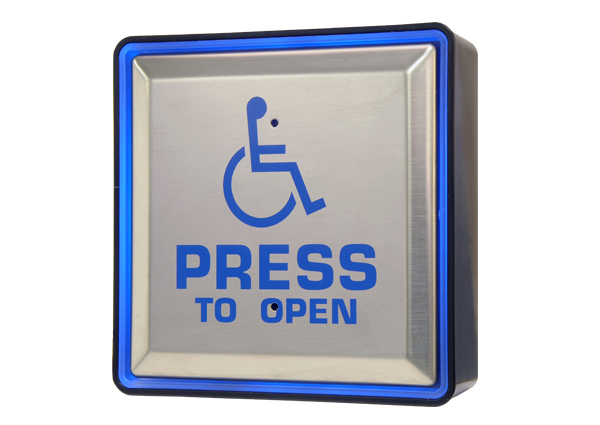

| 6" Square | |
| Design | |
| Style | Square |
| Material/Finish | 18-gauge Stainless Steel/Brushed Finish |
| Standard Engravings | Plain (None) Handicap Logo/Press To Open (HPTO) Press To Open (PTO) Handicap Logo (HCP) |
| Part Number(s) | See Hardware Catalog at top of page for details |
| Operation | |
| Electrical/Power | Low Voltage: 12-24 VAC/VDC 9 VDC (Battery) with Wireless Transmitter |
| Operating Temperature | -40˚C to 60˚C Optional Transmitter: 433 MHz: -4°F (-20°C) to 122°F (55°C) |
| Dimensions (WxHxD) | Switch: 6.00" x 6.00" x 1.50" (153x153x38) |
| Radio-Control Signal Range | Up to 100 feet with Larco's Ultra-small Transmitter |
| Activation Switch Type | (1) NO or NC |
| Activation Switch Rating | 15A @ 125 or 250 VAC or 2A @ 48 VDC |
| Options | |
| Mounting | Switch only (includes Adapter Plate) 6" Universal Box: 6.63" x 6.63"x 1.80" (169x169x47) Utility Box: 4.00" x 4.00" x 4.00" (102x102x102) |
| Wireless Communication | 433 MHz Receiver & Transmitters 300 MHz Receiver & Transmitters |

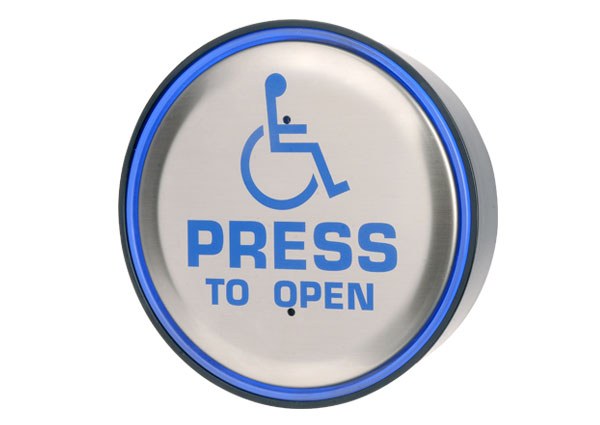

| 6" Round | |
| Design | |
| Style | Round |
| Material/Finish | 18-gauge Stainless Steel/Brushed Finish |
| Standard Engravings | Plain (None) Handicap Logo/Press To Open (HPTO) Press To Open (PTO) Handicap Logo (HCP) |
| Part Number(s) | See Hardware Catalog at top of page for details |
| Operation | |
| Electrical/Power | Low Voltage: 12-24 VAC/VDC 9 VDC (Battery) with Wireless Transmitter |
| Operating Temperature | -40˚C to 60˚C Optional Transmitter: 433 MHz: -4°F (-20°C) to 122°F (55°C) |
| Dimensions (WxD) | Switch: 6.00" Diameter x 1.50" (152x38) |
| Radio-Control Signal Range | Up to 100 feet with Larco's Ultra Small Transmitters |
| Activation Switch Type | (1) NO or NC |
| Activation Switch Rating | 15A @ 125 or 250 VAC or 2A @ 48 VDC |
| Options | |
| Mounting | Switch only (includes Adapter Plate) 6" Universal Box: 6.63" x 6.63"x 1.80" (169x169x47) 6" Round Box" 6.63” Diameter x 1.83” Deep (169x47) Utility Box: 4.00" x 4.00" x 4.00" (102x102x102) |
| Wireless Communication | 433 MHz Receiver & Transmitters 300 MHz Receiver & Transmitters |
